After $119.99 in potential instant savings!
Before ordering, please confirm system compatibility.⇒ View Compatibility Tool

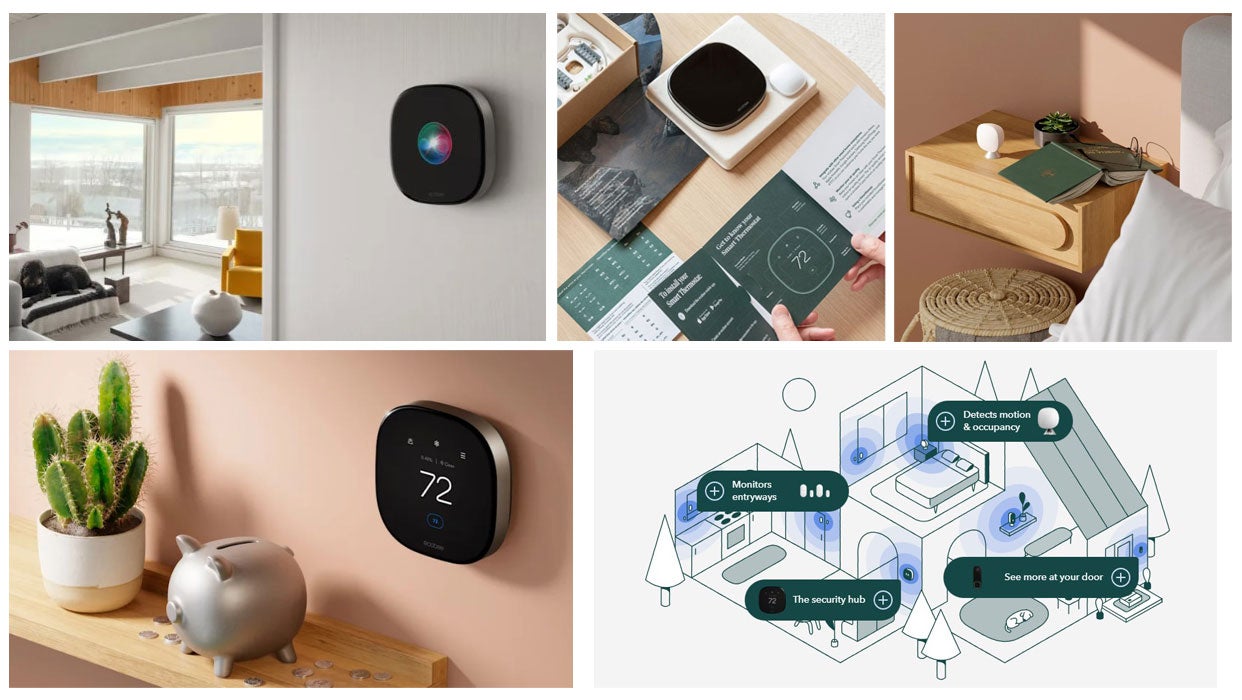

Smart savings: Completely redesigned inside and out with our biggest breakthroughs yet for a device you’ll be proud to display. Solve your comfort, home health, and security needs, all in one beautiful design.
Reads the room: Unlock a healthier home with indoor air quality monitoring, including alerts and tips. Built-in air quality monitor alerts you when air quality is poor and offer tips on how to improve it. Air filter change reminders make cleaner air a breeze. Plus, the included ecobee SmartSensor detects which rooms are occupied and adjusts the temperature for perfect comfort. It can also tell when the home is empty, and can reduce heating or cooling to lower energy costs.
HVAC Compatibility
Works with most 24VAC HVAC equipment, including conventional furnaces and air conditioners (2H/2C), heat pumps (2H/2C + 2 stage AUX heat), boilers, and PTACs or fan coil units with up to 3 fan speeds. One 1-wire accessory or one 2-wire accessory support for humidifiers, dehumidifiers, and ventilators (HRV/ERV).
Works with other ecobee products.
Smart Thermostat Premium connects to ecobee Smart Security (subscription required), SmartCamera with voice control, SmartSensors, and SmartSensors for doors and windows.
Installation
ecobee thermostats are powered by a dedicated 24VAC power supply using a Common wire (or C wire) for consistent performance, even in the coldest weather. The included Power Extender Kit allows for installation in most homes without a C wire.
Thermostat sensors
TemperatureHumidityOccupancy (Radar)Proximity (Radar)
Wire terminals
Rc G Y1 Y2 OB PEK+ C Rh W1 W2 ACC- ACC+
Voice control
Yes
Warranty
Industry-leading 3-year warranty.
Connectivity and security
Dual-band Wi-Fi: 802.11 b/g/n @ 2.4GHz, 802.11 a/n/ac @ 5GHzBluetooth 5.0WPA, WPA2, WPA3 encryption methodsDHCP (dynamic) or static IP addressing168-bit SSL encryption915MHz radio
Temperature range
Desired Temperature: 45° to 92°F (7° to 33°C)Display: 40° to 100°F (5° to 37°C)Sensitivity: +/− 1°F (+/− 0.5°C)Operating: 14° to 122°F (-10° to 50°C)
Humidity range
Display: 20% to 90%Sensitivity: +/− 5%Operating: 5% to 95% RH (non-condensing)
Storage−31° to 113°F (−35° to 45°C)5% to 95% RH (non condensing)
Air quality monitor
Unlock superior home health with a built-in air quality monitor that alerts you when air quality is poor and gives simple steps on how to improve it.
Sustainability
Recycled packagingMercury-freeArsenic-freePVC-freeROHS compliant
Language
English
Powering method
Wired 24VAC through terminals C and Rc.Power Extender Kit enables you to reliably power your thermostat without having to run a fifth wire.
Power consumption
Up to 3.5 VA
Bandwidth
15-20 MB/month (dependent on Alexa Voice Service usage)
What’s in the box
Smart Thermostat PremiumThermostat mounting plateSmartSensor with detachable stand and adhesive wall-mountQuick-start guideWire labelsScrews and drywall anchors
Compatibility Checker
Most customers are able to install their ecobee smart thermostat in 30 minutes or less.
Frame
Black front, die cast metal frame – zinc alloy
Display
4 in. full-color LCD touchscreen540 x 540 pixel display
Product dimensions
Length: 403.89 mm (4.09 in)Width: 103.89 mm (4.09 in)Depth: 25.9mm (1.02 in)
ENERGY STAR® Certified
Features:
15-amp resettable circuit breaker
1,440 joules of surge protection
Consumes <1W at all times
3-ft. heavy-duty cord
Angled space-saver plug
Child protective outlet covers
Convenient and eco-friendly product packaging
Specifications
Voltage: 125 VAC, +/-1-%, 60 Hz
Power Rating: 15 Amp
Surge Protection: 1,875W, 1,440 Joules
VPR Rating: 700V (L-N), 900V (L-G), 800V (N-G)
Outlet: NEMA 5-15R
Length: 5"
Width: 2"
Height: 14.7"
Weight: 1.05 lbs
Cord Length: 3 Foot
Warranty: The Manufacturer guarantees to the original purchaser or recipient of this advanced power strip that it is free from defects in material and workmanship for five years from the date of purchase. Warranty is limited to repair or replacement of the advanced power strip. Advanced power strips being returned must included proof of purchase.
